Brass Components
Flare
| Description | Required Coil Type | Max Working Pressure (BAR) | Danfoss Code |
|---|---|---|---|
| EVR2″ | a.c | 45,2 | 032F8056 |
| EVR3″ | a.c / d.c | 45,2 | 032F8116 |
| EVR6″ | a.c / d.c | 45,2 | 032F8079 |
| EVR10″ | a.c / d.c | 35,0 | 032F8098 |
Solder
| Description | Required Coil Type | Max Working Pressure (BAR) | Danfoss Code |
|---|---|---|---|
| EVR2 1/4 | a.c | 45,2 | 032F1201 |
| EVR3 3/8 | a.c / d.c | 45,2 | 032F1204 |
| EVR6 1/2 | a.c / d.c | 45,2 | 032F1209 |
| EVR10 1/2 | a.c / d.c | 35,0 | 032F1217 |
| EVR10 5/8 | a.c / d.c | 35,0 | 032F1214 |
| EVR15 5/8 | a.c / d.c | 32,0 | 032F1228 |
| EVR15 7/8 | a.c / d.c | 32,0 | 032F1225 |
| EVR20 7/8 | a.c | 32,0 | 032F1240 |
| EVR20 1 1/8 | a.c | 32,0 | 032F1244 |
| EVR25 1 1/8 | a.c / d.c | 32,0 | 032F2201 |
| EVR32 1 5/8 | a.c / d.c | 32,0 | 042H1104 |
| EVR32 1 3/8 | a.c / d.c | 32,0 | 042H1106 |
| EVR40 2 1/8 | a.c / d.c | 32,0 | 042H1112 |

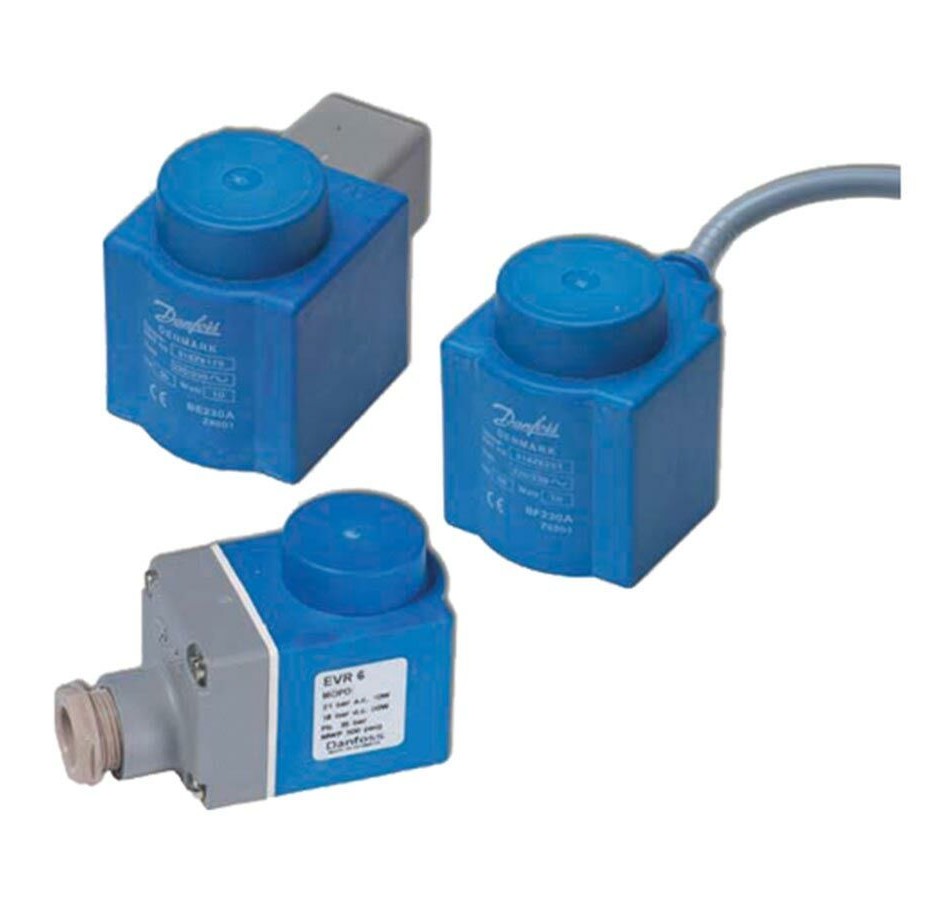

Coils for Solenoid Valves
| Description | Danfoss Code |
|---|---|
| 220-230V 50/60HZ\n10watt 1m cable/220-\n230V 50/60HZ 10watt 1m\nκαλώδιο | 018F6282 |
| 220-230V 50/60HZ 10watt terminal box / 220-230V 50/60HZ 10watt τερματικό κουτί |
018F6732 |
| 110V 50/60HZ 10watt\nterminal box / 110V\n50/60HZ 10watt\nτερματικό κουτί | 018F6730 |
| 24V 50HZ 12watt terminal box /24V 50HZ 12watt τερματικό κουτί |
018F6807 |
| 24V 50HZ 10watt DIN\nplugs / 24V 50HZ 10watt\nDIN βύσμα | 018F6182 |
