Oil Separators

Castel

Description	Max Working Pressure (BAR)	Working Temperature	Danfoss Code
½” solder fixed	45	-10 / +130oC	5540/4
⅝” solder fixed	45	-10 / +130oC	5540/5
⅞” solder fixed	45	-10 / +130oC	5540/7
1- ⅛” solder fixed	45	-10 / +130oC	5540/9
1- ⅜” solder fixed	45	-10 / +130oC	5540/11
1- ⅝” solder fixed	45	-10 / +130oC	5540/13
2- ⅛” solder fixed	45	-10 / +130oC	5540/17
⅝” – ⅞” solder contained	45	-10 / +130oC	5520/C
1 ⅛” – 1 ⅜” solder contained	45	-10 / +130oC	5520/D
1- ⅝”- 1 5/8” solder contained	45	-10 / +130oC	5520/E

Ac&R

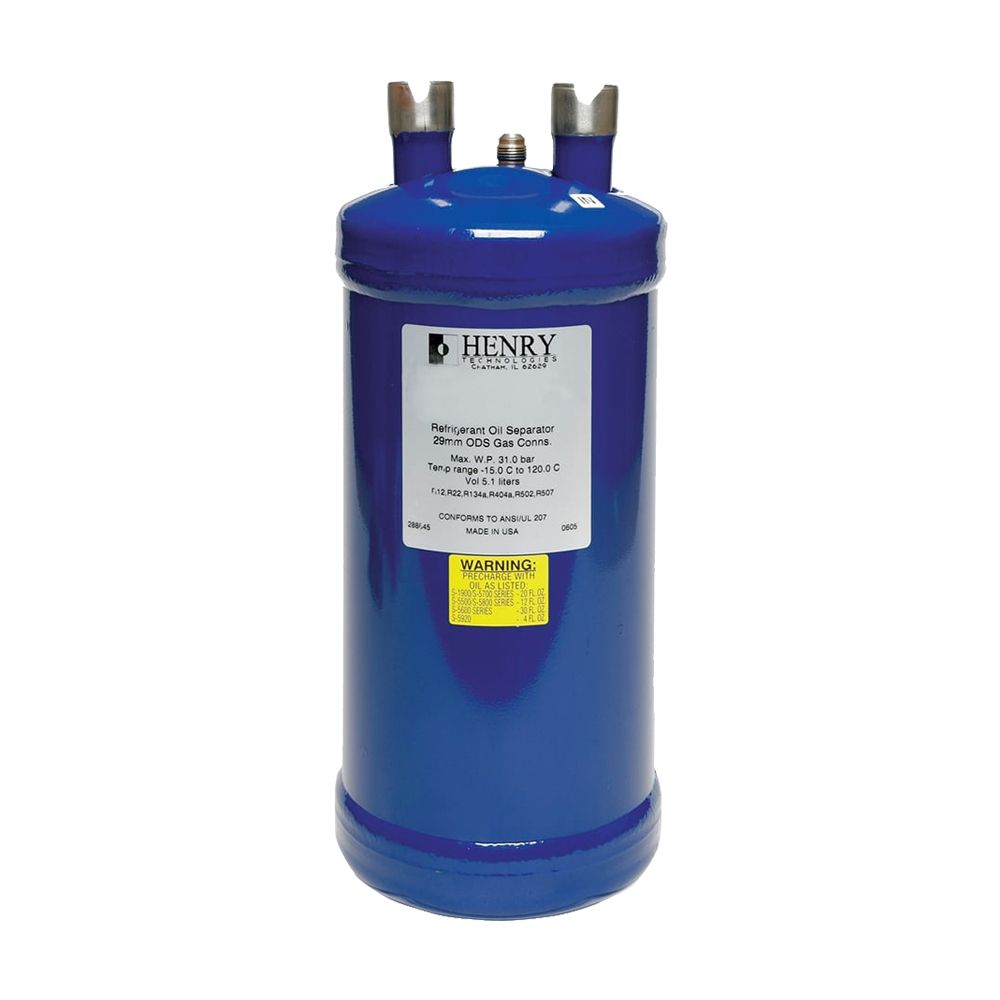

Oil Separator Fixed

<p>Oil Separator Fixed</p>

Description	Max Working Pressure (BAR)	Working Temperature	Danfoss Code
⅜”	31	-15 / +120oC	S-5581
½”	31	-15 / +120oC	S-5582
⅝”	31	-15 / +120oC	S-5585
⅞”	31	-15 / +120oC	S-5587
1- ⅛ ”	31	-15 / +120oC	S-5588
1- ⅜”	31	-15 / +120oC	S-5590
1- ⅝”	31	-15 / +120oC	S-5692
2- ⅛”	31	-15 / +120oC	S-5694

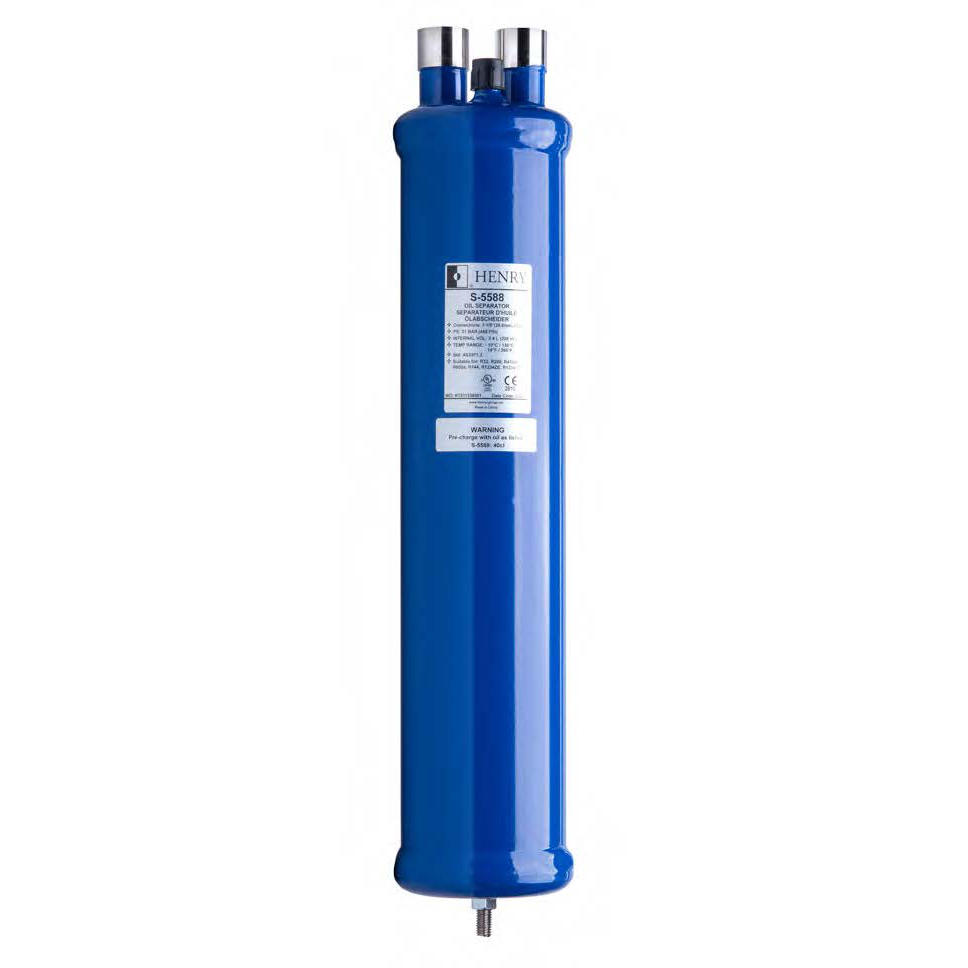

Contained Oil Separator

<p>Contained Oil Separator</p>

Description	Max Working Pressure (BAR)	Working Temperature	Danfoss Code
1- ⅛”	31	-15 / +120oC	S-5888-CE
1- ⅜”	31	-15 / +120oC	S-5890-CE

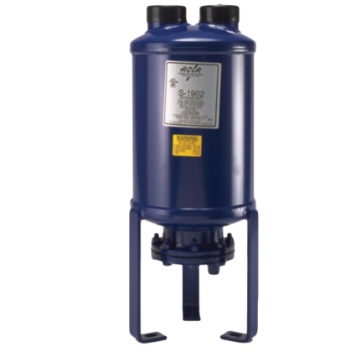

Contained Downwords Oil Separator

<p>Contained Downwords Oil Separator</p>

Description	Max Working Pressure (BAR)	Working Temperature	Danfoss Code
1- ⅝”	31	-15 / +120oC	S-5792-CE
2- ⅛”	31	-15 / +120oC	S-5794-CE
1- ⅝ ”	31	-15 / +120oC	S-1901
2- ⅛”	31	-15 / +120oC	S-1902-CE
2 -⅝”	31	-15 / +120oC	S-1903-CE
3 -⅛”’	31	-15 / +120oC	S-1904-CE

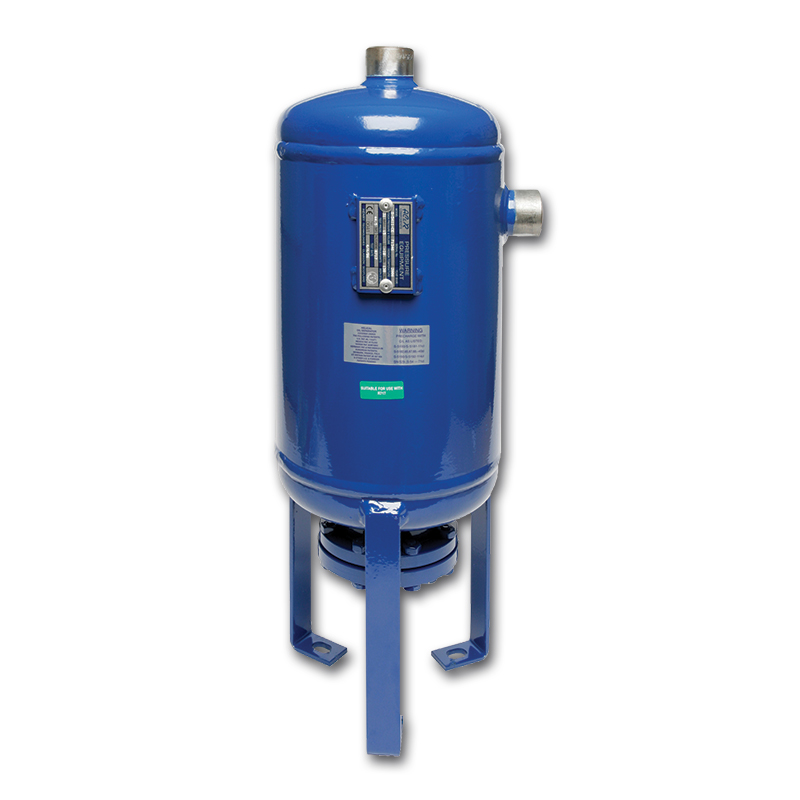

Oil Separator Helical Fixed

<p>Oil Separator Helical Fixed</p>

Description	Max Working Pressure (BAR)	Working Temperature	Danfoss Code
¼”	31	-15 / +120oC	S-5180
⅜”	31	-15 / +120oC	S-5181
½”	31	-15 / +120oC	S-5182-CE
⅝”	31	-15 / +120oC	S-5185-CE
⅞”	31	-15 / +120oC	S-5187-CE
1- ⅛”	31	-15 / +120oC	S-5188-CE
1- ⅜”	31	-15 / +120oC	S-5190-CE
1- ⅝”	31	-15 / +120oC	S-5192-CE
2- ⅛”	31	-15 / +120oC	S-5194-CE

Contained Downwords Oil Separator

<p>Contained Downwords Oil Separator</p>

Description	Max Working Pressure (BAR)	Working Temperature	Danfoss Code
2- ⅛”	31	-15 / +120oC	S-5412-CE
2- ⅝”	31	-15 / +120oC	S-5413-CE
3- ⅛”	31	-15 / +120oC	S-5414-CE

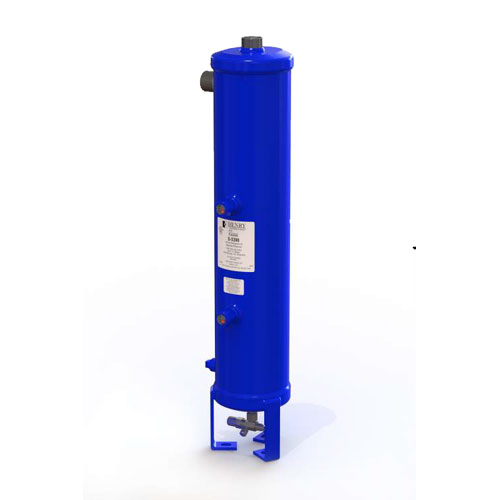

Oil Separator Helical & Reservoirs Oil

<p>Oil Separator Helical & Reservoirs Oil</p>

Description	Max Working Pressure (BAR)	Working Temperature	Danfoss Code
1- ⅜”	31	-10 / +130oC	S-5390-CE
1- ⅝”	31	-10 / +130oC	S-5392-CE
2- ⅛”	31	-10 / +130oC	S-5394-CE
2- ⅛”	31	-10 / +130oC	S-5422-CE
2- ⅝”	31	-10 / +130oC	S-5423-CE
2- ⅛”	31	-10 / +130oC	S-5424-CE

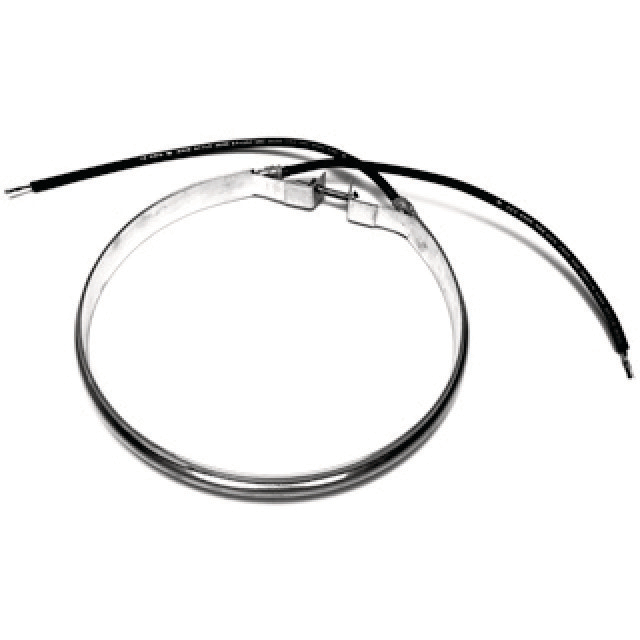

Heater For S-5200,S-1900,S-5700

<p>Heater For S-5200,S-1900,S-5700</p>

Description	Code
4″ 25W 220V	S-9111
6″ 50W 220V	S-9112
